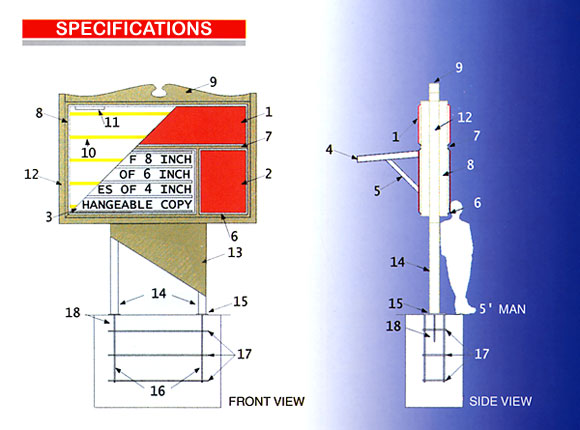

1. ID Panel - prominently displays identification graphics.
2. Logo Panel - distinct area to display applicable symbol, emblem, mascot. or logo graphics.
3. Message Panel - tracked to accommodate changeable copy.
4. Vandal cover - protects changeable copy from vandalism, environment
5. Vandal Cover props - automatically restrains the Vandal cover in an upright position to facilitate changing copy. Closes with a secondary finger lift and secured with keyed locks.
6. Draft - provides face rigidty and depth dimension created by thermal forming the lexan face.
7. Divider Stripe - vacuum formed into the face to provide distinctive panels & face rigidity.
8. Cabinet - extruded aluminum in depths of 7", 9". 10.75" as applicable.
9. Decorative trim - an aesthetic option.
10. Fluorescent lamps - high output GE cool white.
11. Ballast - Advance instant start, cold weather compatible.
12. Yoke - on specific models an appealing exterior support structure.
13. Cowling - decorative trim covering the legs.
14. Legs - the support columns that transfer the wind load to the ground
15. Base Plates - welded to legs, the final connection between legs and anchor bolts.
16. Anchor Bolts - galvanized steel bolts.
17. Rebar - steel reinforcement for concrete foundation.
18. Electrical Conduit - placed into foundation at the pour to result in a non-exposed electrical supply route and connection
|
